FilterBox 12A

Automatically cleaned for medium to heavier dust & fume applications. W3 tested.

  • User friendly and superior filter cleaning, mechanical and/or with compressed air for long filter life

  • Automatic damper preventing dust from leaking out while cleaning

  • Dust free filter replacement and emptying of dust bin

  • Third party approval for welding fumes category W3 according to EN 15012-1

  • Filter efficiency M6 (EN779), MERV 11 (ASHRAE 52.2, 2017). Approved for welding fumes category W3 according to EN 15012-1, third party tested.

Description

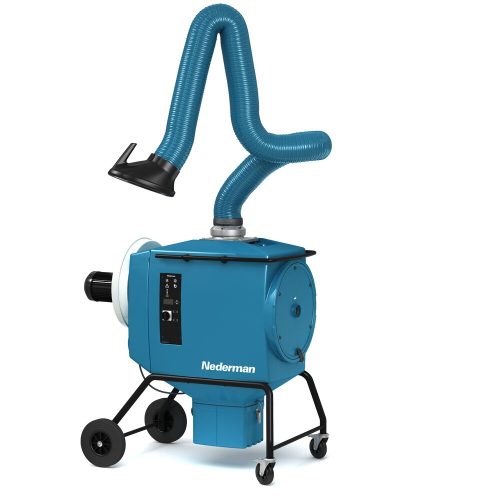

The FilterBox 12A is equipped with a powerful fan for a maximum air flow capacity of 1 200 m3/h (700 CFM). An integrated silencer reduces noise from the fan and outlet air. The unit has an advanced filter control system with automatic cleaning that starts when the air flow is too low. Available either as a mobile unit on wheels or attached to a floor stand. Additional protection from harmful particles is provided if a HEPA filter is installed.

For dust applications, the unit is cleaned mechanically. For welding fumes it uses a combination of mechanical and compressed air cleaning.

For welding applications, compressed air cleaning is required.

Note! FilterBox is not for use in environments where combustible dust or gases are present, and it is not for use in filtering combustible dust or gases.

Models

FilterBox 12A Pne 3ph 400V 50Hz mobile

Fbox 12A Pne 3ph 230V 50Hz mobile

Fbox 12A Pne 3ph 230V 50Hz floor

Fbox 12A Pne 3ph 400V 50Hz floor

Fbox 12A Pne wo Extr 3/400/50 mob

Fbox 12A Pne wo Extr 3/400/50 Flo

Technical Data

Airflow (m³/h) 1200
Certifications CE
Compressed air requirement DIN ISO 8573-1, class 5/5/4 (7 bar)
Dustbin volume (l) 15
Excluded tech fields ItemMaxAirFlow;ItemElectricplug;ItemNbrofFilterElements;ItemFilterMaterial;ItemFilterType;ItemExtractionMethod
Extraction arm diameter (mm) 160
Filter Area (m²) 13
Filter efficiency (%) 99
Installation Indoor
Material Casing in rotomoulded plastic
Noise level (dB(A)) 74
Protection class IP 54
Suitable for combustible dust false
