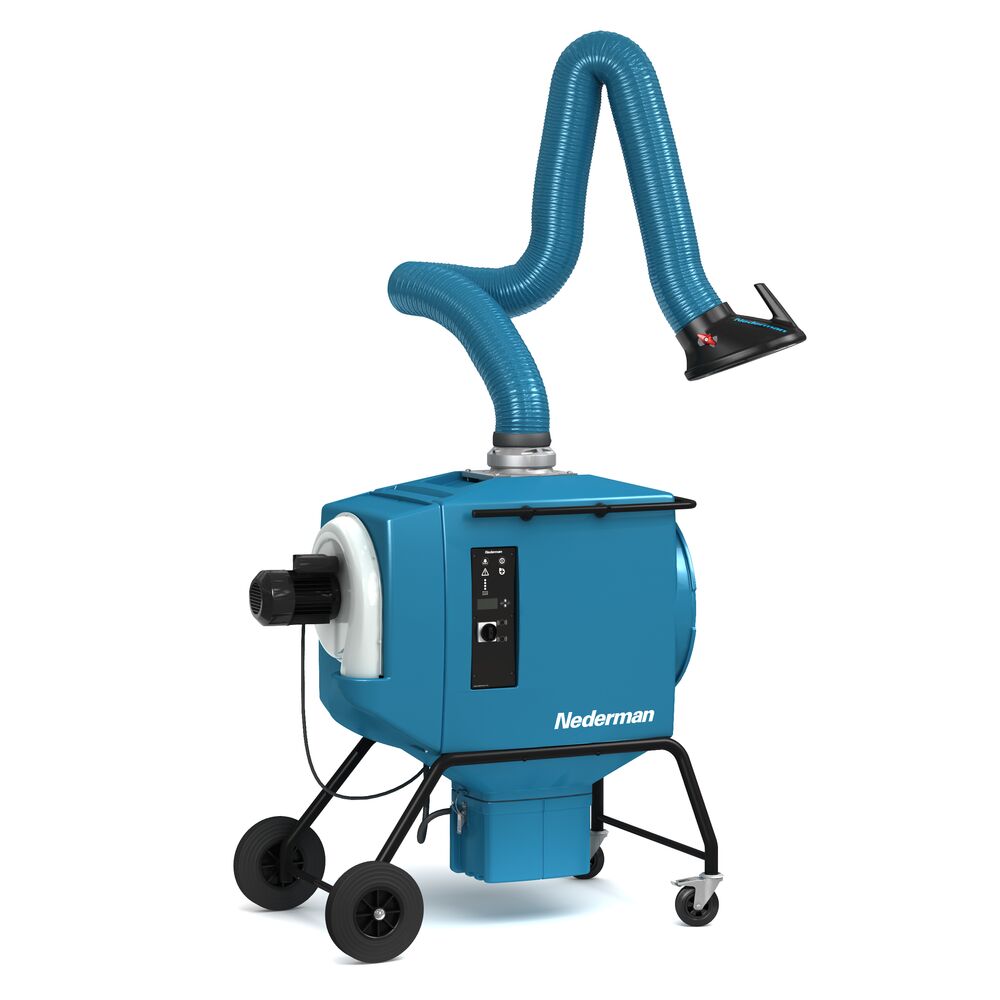

FilterBox 10A Nano

Automatically cleaned for light to medium welding fumes and dust applications, with a unique filtration system designed specific for welding.

Using the latest nanofiber technology for filtration
Automatically operated filter cleaning with compressed air for long filter life.
LCD panel with operating status and menu system for parameter setup and settings. Possibility to connect a welding sensor clamp to automatically start the fan.
Automatic damper preventing dust from leaking out while cleaning. Dust free filter replacement and emptying of dust bin.
MERV 15 rated filter *ASHRAE Standard 52.2, 2017, third party tested. Approved for welding fumes category W3 according to ISO 21904-1, third party certified.

Categories: FilterBox, Mobile dust and fume extractors

Description

The FilterBox 10A NANO offers a flexible and easy-to-move solution for your workshop, using the latest nanofiber filter technology for unrivalled efficiency and tool life. Perfect solution for welding of aluminium, steel and stainless steel, also including high alloy applications.

The FilterBox 10A NANO is equipped with a N24 fan for a maximum air flow capacity of 1 000 m³/h (600 CFM). The nanofiber media technology utilized in the extra large 17m² (183 ft²) cartridge is ideal for frequent welding. It offers significant performance advantages like higher efficiency and surface loading properties which results in more effective filter cleaning and longer cleaning intervals. Advantages that will impose benefits in terms of filter life, productivity and lower cost of ownership.

The advanced filter control system with audible alarm, LEDs and LCD screen provides additional safety. And the integrated silencer provides extra comfort, reduces noise from the fan and outlet air. Additional protection from harmful particles is provided if a HEPA filter is installed (optional).

Note! FilterBox is not for use in environments where combustible dust or gases are present, and it is not for use in filtering combustible dust or gases.

Models

FilterBox 10A+ NANO PneOnly 3ph 230V 50H

FilterBox 10A+ NANO PneOnly without extraction arm

FilterBox 10A+ NANO PneOnly 1ph 230V 50H

FilterBox 10A+ NANO PneOnly 3ph 400V 50H

Technical Data

Airflow (m³/h)	1000
Certifications	CE
Dustbin volume (l)	15
Excluded tech fields	ItemMaxAirFlow;ItemNbrofFilterElements;ItemFilterType
Extraction arm diameter (mm)	160
Filter Area (m²)	17
Filter efficiency (%)	99.9
Installation	Indoor
Material	Casing in rotomoulded plastic
Noise level (dB(A))	66
Protection class	IP 54
Suitable for combustible dust	false

Downloads

en-AU_Product Sheet PDF_FilterBox_10A_NANO.pdf

FilterBox sales leaflet

en_Product Sheet PDF_FilterBox_10A_NANO.pdf

FilterBox 10A NANO
