Portable source capture for on-torch extraction
Portable and easy to carry.
Automatically maintains the set extraction flow – ideal for on-torch applications
Warnings at malfunction and when the filter is 85% and 100% full
High efficiency Nanofiber filter protecting the user from submicron particles. F9 (EN 779) MERV 14 (ASHRAE 52.2)
Designed for torches requiring max 18 kPa at connection point – according to ISO 21904

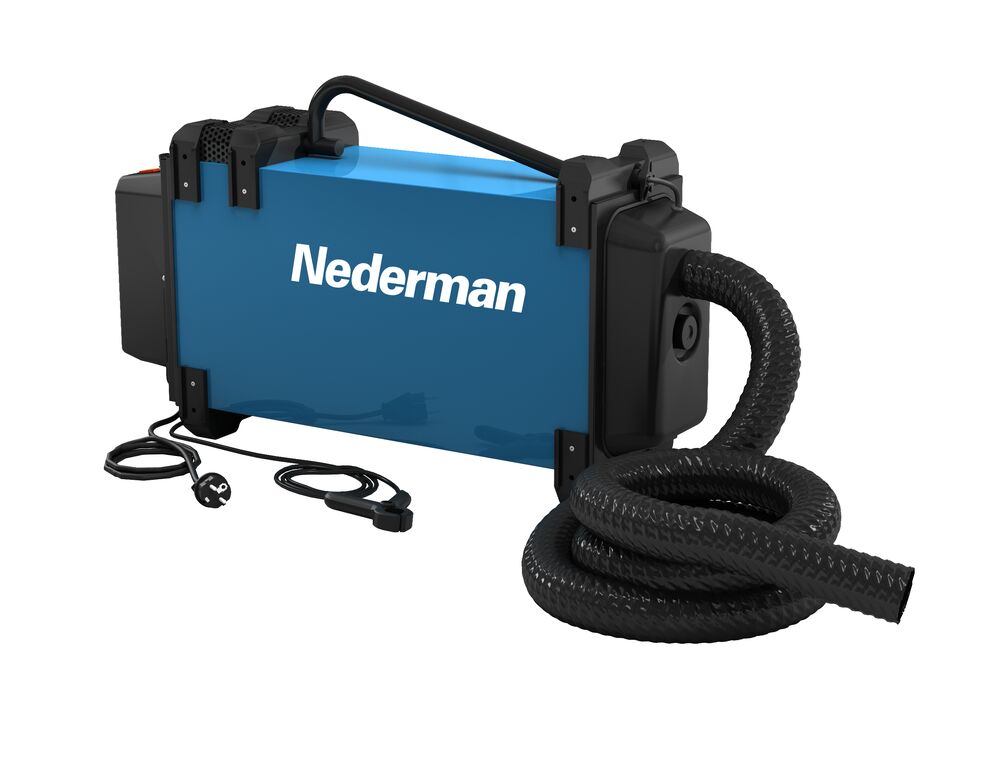

The Fume Eliminator 860 is designed to be carried to the working area. Although it can be used with a nozzle, it is specifically developed for on-torch applications – connected directly to the welding torch, it extracts the fume directly at the source. The FE 860 has a knob to set the desired suction level, an automatic start/stop function, which starts the unit as soon as the welding begins and significantly improved motor performance (versus the FE840/841).
The FE 860 is suitable for extraction of fume in maintenance welding applications and is compliant with ISO 21904 (W3).
FE860 230V EU
| Hose length (m) | 2,5 |
| Application | Fumes |
| Certifications | CE |
| Filter Area (m²) | 5,3 |
| Filter efficiency (%) | 99.7 |
| Installation | Indoor |
| Max Airflow (m3/h) | 180 |
| Standard | ISO 21904-1 |
| Working pressure (kPa) | 25 |
