Manually cleaned for heavier dust & fume applications.
User friendly and superior filter cleaning, mechanical and/or with compressed air for long filter life
Automatic damper preventing dust from leaking out while cleaning
Dust free filter replacement and emptying of dust bin
Third party approval for welding fumes category W3 according to EN 15012-1
Approved for welding fumes category W3 according to EN 15012-1, third party tested.

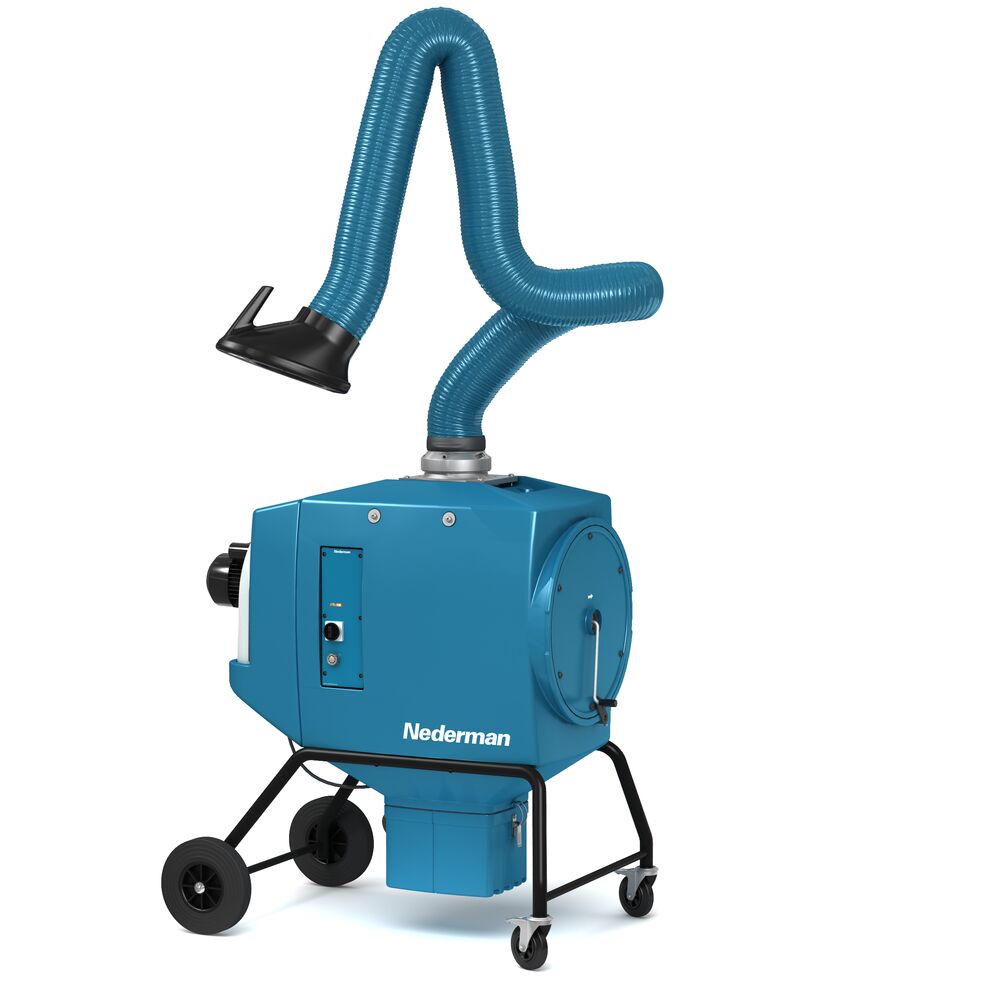

The FilterBox 12M is equipped with a powerful fan for a maximum air flow capacity of 1 200 m3/h (700 CFM). An integrated silencer reduces noise from the fan and outlet air.
The filter cartridge is manually cleaned. There is an alarm indicating when the air flow is too low, as well as an operating hours meter.
The unit is available either as a mobile unit on wheels or attached to a floor stand. Additional protection from harmful particles is provided if a HEPA filter is installed.
For dust applications, the unit is cleaned mechanically. For welding fumes it uses a combination of mechanical and compressed air cleaning.
For welding applications, compressed air cleaning is required.
Note! FilterBox is not for use in environments where combustible dust or gases are present, and it is not for use in filtering combustible dust or gases.
Fbox 12M. Mobile with Pne 3ph 230V 50Hz mobile
Fbox 12M Pne 3ph 400V 50Hz floor
Fbox 12M. Mobile with Pne 3ph 400V 50Hz mobile
Fbox 12M Pne wo Extr 3/400/50 Mob
Fbox 12M Pne wo Extr 3/400/50 Flo
| Airflow (m³/h) | 1200 |
| Certifications | CE |
| Compressed air requirement | DIN ISO 8573-1, class 5/5/4 (7 bar) |
| Dustbin volume (l) | 15 |
| Extraction arm diameter (mm) | 160 |
| Filter Area (m²) | 13 |
| Filter efficiency (%) | 99 |
| Installation | Indoor |
| Material | Casing in rotomoulded plastic |
| Noise level (dB(A)) | 74 |
| Protection class | IP 54 |
