Manually cleaned for light to medium dust & fume applications.
User friendly and superior filter cleaning, mechanical and/or with compressed air for long filter life
Automatic damper preventing dust from leaking out while cleaning
Dust free filter replacement and emptying of dust bin
Third party approval for welding fumes category W3 according to EN 15012-1
Filter efficiency M6 (EN779), MERV 11 (ASHRAE 52.2, 2017).

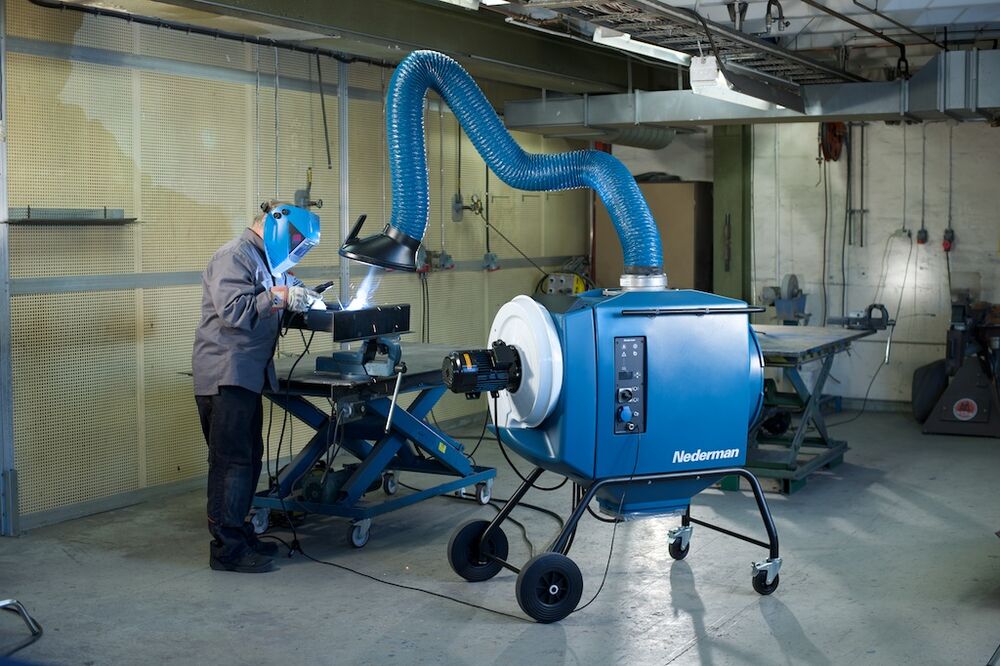

The FilterBox 10M is equipped with a N24 fan for a maximum air flow capacity of 1 000 m3/h (600 CFM). An integrated silencer reduces noise from the fan and outlet air. The unit has a filter supervision system which indicates when the air flow is too low. Depending on the model, it is equipped with mechanical cleaning for dust applications or a combination of mechanical and compressed air cleaning for fumes and dust.
FilterBox 10M is available either as a mobile unit on wheels or attached to a floor stand. Additional protection from harmful particles is provided if a HEPA filter is installed.
For dust applications, the unit is cleaned mechanically. For welding fumes it uses a combination of mechanical and compressed air cleaning.
For welding applications, compressed air cleaning is required.
Note! FilterBox is not for use in environments where combustible dust or gases are present, and it is not for use in filtering combustible dust or gases.
Fbox 10M Pne 3ph 230V 50Hz mobile
Fbox 10M Pne 3ph 400V 50Hz mobile
Fbox 10M Pne 1ph 230V 50Hz mobile
Fbox 10M Pne wo Extr 3/400/50 Flo
Fbox 10M Pne wo Extr 3/400/50 Mob
| Certifications | CE |
| Compressed air requirement | DIN ISO 8573-1, class 5/5/4 (7 bar) |
| Dustbin volume (l) | 15 |
| Excluded tech fields | ItemFumeAndDustApplication;ItemFilterChangeIndication;ItemExtractionMethod;ItemMaxAirFlow;ItemNbrofFilterElements |
| Extraction arm diameter (mm) | 160 |
| Filter Area (m²) | 13 |
| Filter efficiency (%) | 99 |
| Installation | Indoor |
| Material | Casing in rotomoulded plastic |
| Noise level (dB(A)) | 66 |
| Protection class | IP 54 |
| Suitable for combustible dust | false |
