High efficiency fan for the FM filter range

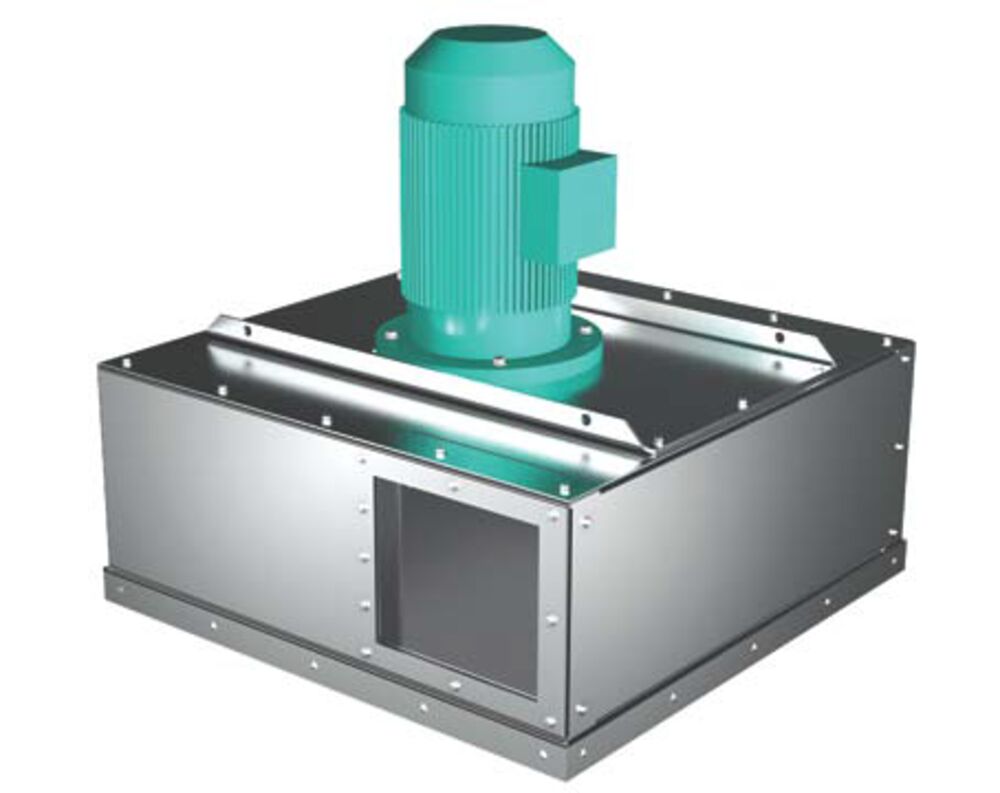

FM fan
Description
The FM fan range is designed exclusively for direct mounting to the clean air chamber of the FM filter units.
The FM fans are designed for high efficiency with low noise levels and are of the non-over-loading type. This gives a safe and reliable system with minimal power consumption when under reduced loads. The fans are only available in RD version.
Models
Fan FM620 3kW 230/400V 50Hz, thermistor, Std.
Fan FM622 4kW 400/690V 50Hz, thermistor, Std.
Fan FM622 4kW 230/400V 50Hz, thermistor, Std.
Fan FM625 5,5kW 230/400V 50Hz Std.
Fan FM625 5,5kW 400/690V 50Hz, thermistor, Std.
Fan FM825 7,5kW 400/690V 50Hz, thermistor, Std.
Fan FM831 11kW 400/690V 50Hz, thermistor, Std.
Fan FM831 11kW 230/400V 50Hz, thermistor, Std.
Fan FM835 15kW 400/690V 50Hz, thermistor, Std.
Fan FM835 15kW 230/400V 50Hz, thermistor, Std.
Fan FM1000 18,5kW 400/690V 50Hz, thermistor, Std
Fan FM1000 18,5kW 230/400V 50Hz, thermistor, Std
Technical Data
| Installation | Indoor;Outdoor |
| Material | Galv. steel, 2 mm (FM1000 = 4 mm) |
| Suitable for combustible dust | false |
