Compact
-
Easy to use

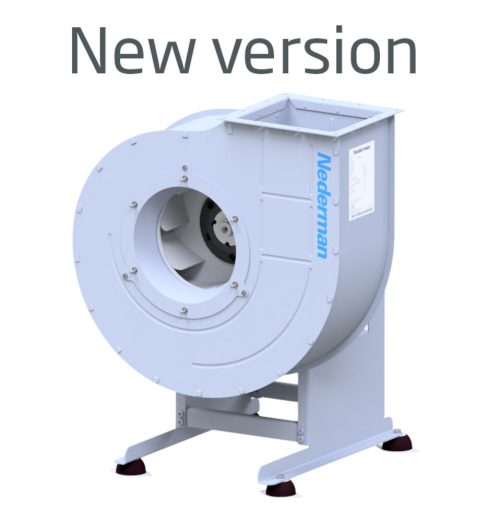

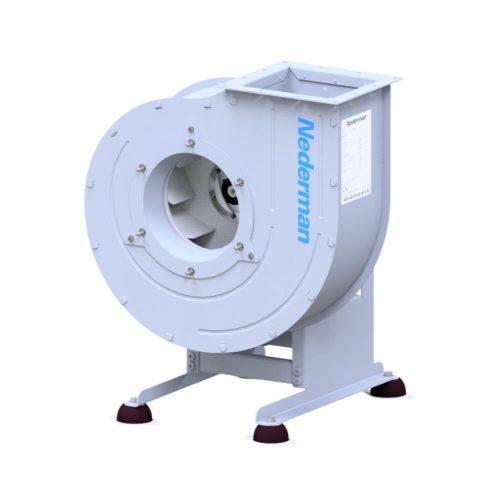

Fan N24, Single phase
Description
A centrifugal fan mainly designed for use with Nederman extraction products.
Note! The fan must not be used in an environment with danger of explosion or for transport of inflammable or explosive gases.
Models
N24 fan 0.75kw. 110-120/220-240v.
Technical Data
| Airflow (m³/h) | 1500 |
| Ambient temperature range | -20º to +40º Celsius |
| Application | Dust;Fumes |
| Certifications | CE |
| Installation | Indoor;Outdoor |
| Material | Fan casings: Galvanised sheet steel Impeller: Die cast aluminium |
| Noise level (dB(A)) | 61 dB at 1200 m3/h |
| Operating Temperature | Max 60 C |
