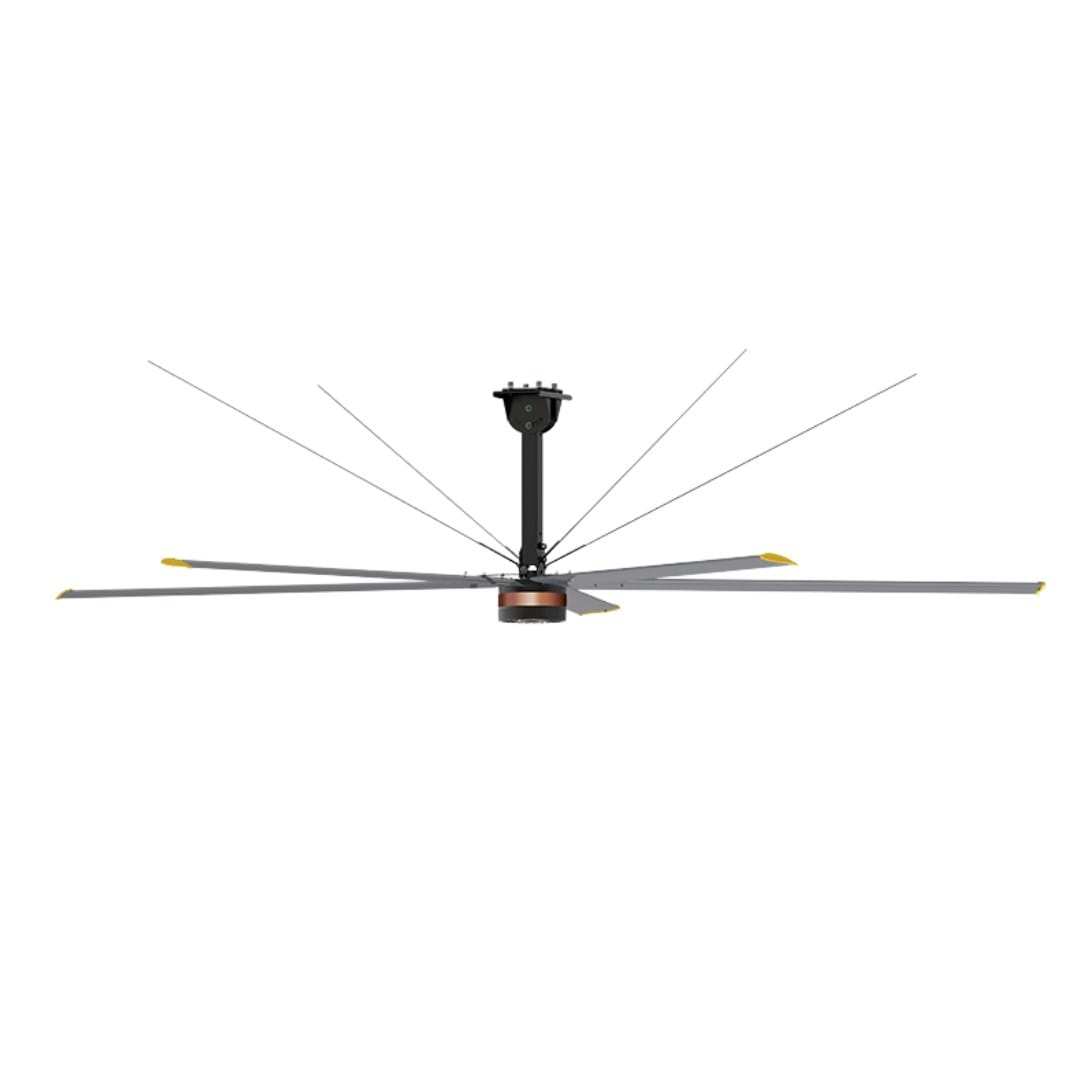

CDM Series HVLS Fans

The Apogee HVLS Ceiling Fan harnesses ultra-efficient PMSM motor technology to deliver massive airflow at low speed, making it the most effective solution for large-space ventilation, cooling, and circulation.

With aerodynamic blades and advanced manufacturing, it outperforms traditional HVAC and high-speed fans by moving high volumes of air with as little as 1kW of power, while also controlling moisture.

For commercial applications, the Apogee CDM Series HVLS Fan is powered by a direct-drive IE4 PMSM motor for whisper-quiet 38dB operation, offering maintenance-free efficiency that makes it ideal for business halls, schools, bars, and other public spaces.

Models

68CDM-1800, 68CDM-2000, 68CDM-2400, 68CDM-3000, 68CDM-3600

Technical Data

PMSM MOTOR

The patented Apogee PMSM direct-drive motor is highly efficient, delivering up to 50% energy savings compared to similar fans, while offering zero maintenance and exceptional reliability.

BLADES & WINGTIPS

Equipped with six high-performance aluminium blades paired with engineered wing-tips shaped to maximise downward air movement, the fan delivers airflow more quickly and efficiently.

CONTROLLER OPTIONS

The Apogee CDM Series Fan comes standard with a AEXP touch screen controller. Optionally, it can be upgraded to have Wi-Fi capability to be used in conjunction with the Smart Central Control, which can be control up to 30 fans. Other Wi-Fi options include thermostat or humidity control (further accessories required).

INSTALLATION

The CDM-Series fan is designed for flexible installation, with options for H-beams, I-beams, spherical grids, trusses, reinforced concrete, and wall mounts.
